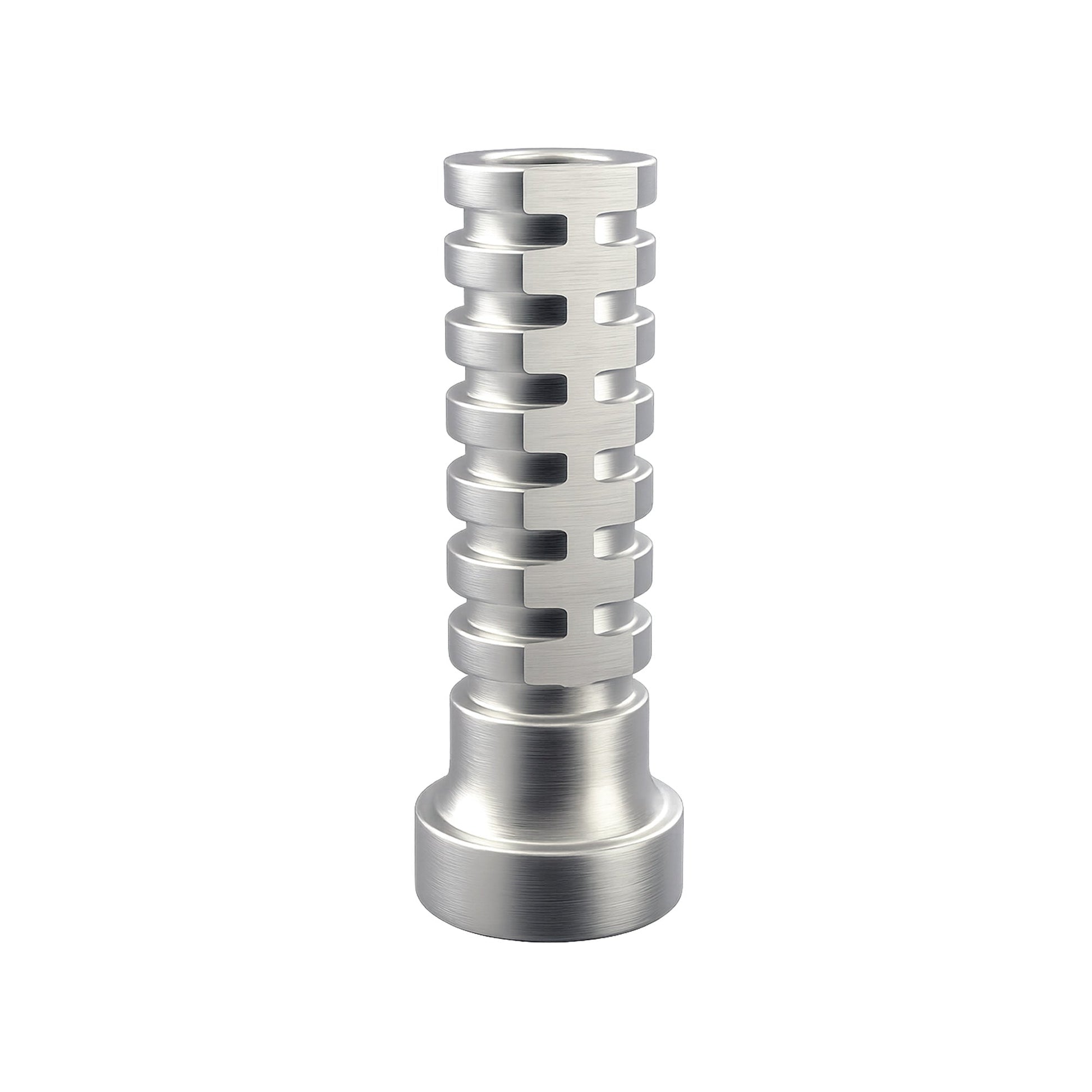

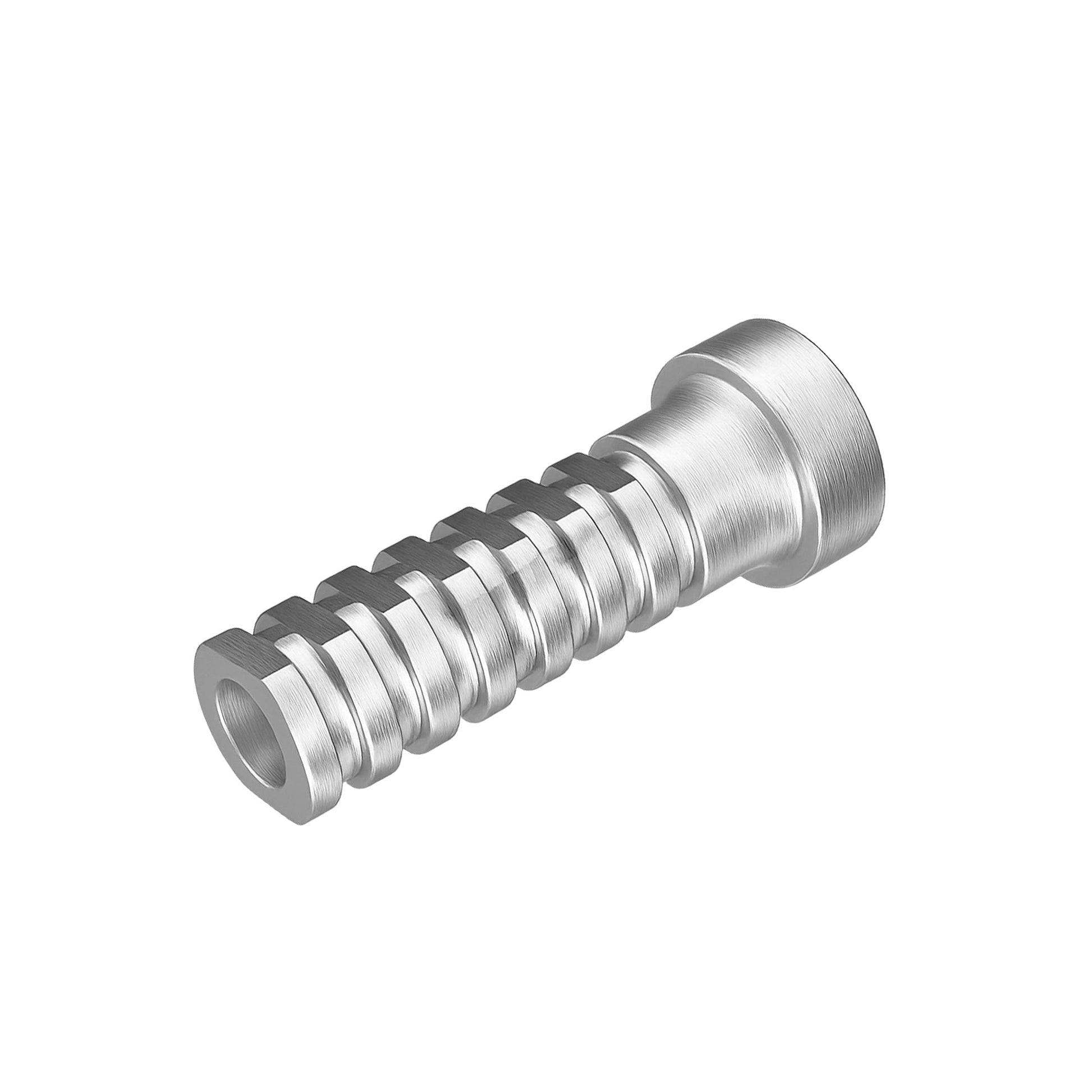

Titanium Sleeve Abutment M1.4 with an Enlarged Diameter

DSI Titanium Sleeve for Premium Multi-Unit Abutment M1.4 is used as a temporary restoration solution. The sleeve is compatible with Nobel Biocare® and other multi-unit systems with the MUA-level connection of M1.4 thread-type.

This Titanium Sleeve has an enlarged diameter and thicker walls. Due to these features, it is suitable for welding and for use in connection to a metal bar (Dolder/Hader Bar).

The sleeve makes a solid connection with the multi-unit abutment. It is made out of high-quality Titanium alloy Ti-6Al-4V grade 23 ELI which gives an adequate combination of biocompatibility and durability.

The sleeve can be installed using a regular hexagonal  abutment driver Ø.050 (1.25mm).

Features and benefits:

• Excellent biocompatibility, no risk of abruption
• Precise, non-rotational, functional
• Simple, fast, and accurate positioning
• Outstanding stability for the crowns and bridges

Technical information:

• Material: Titanium alloy Ti-6Al-4V grade 23 ELI - biocompatible
• Diameter: 3.78mm
• Length: 12mm
• Wall thickness: 0.93 mm
• Platform: Upper hexagon multi-unit abutment connection 1.4M
• Compatibility: DSI®, Nobel Biocare®

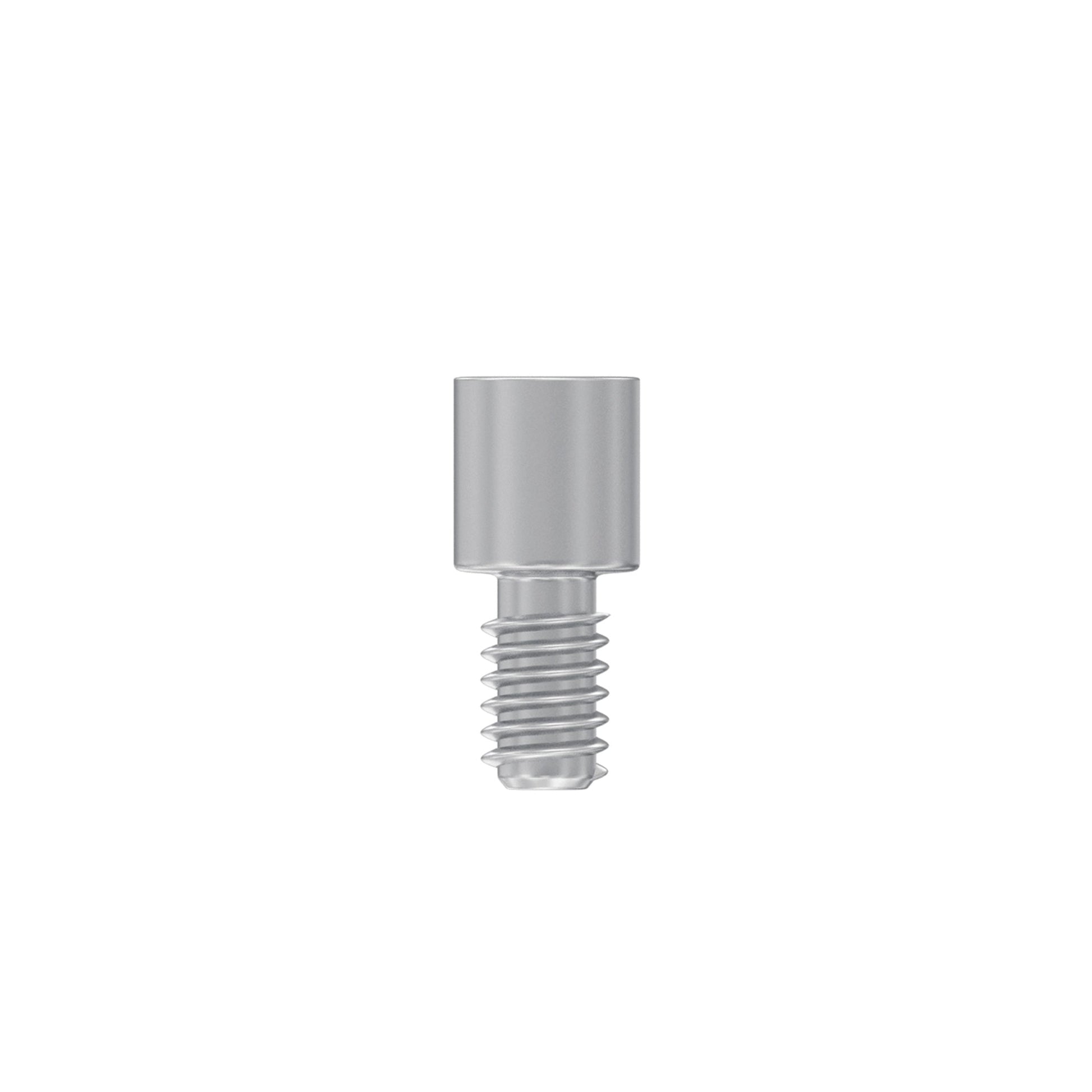

• Titanium fixation screw included with every abutment
