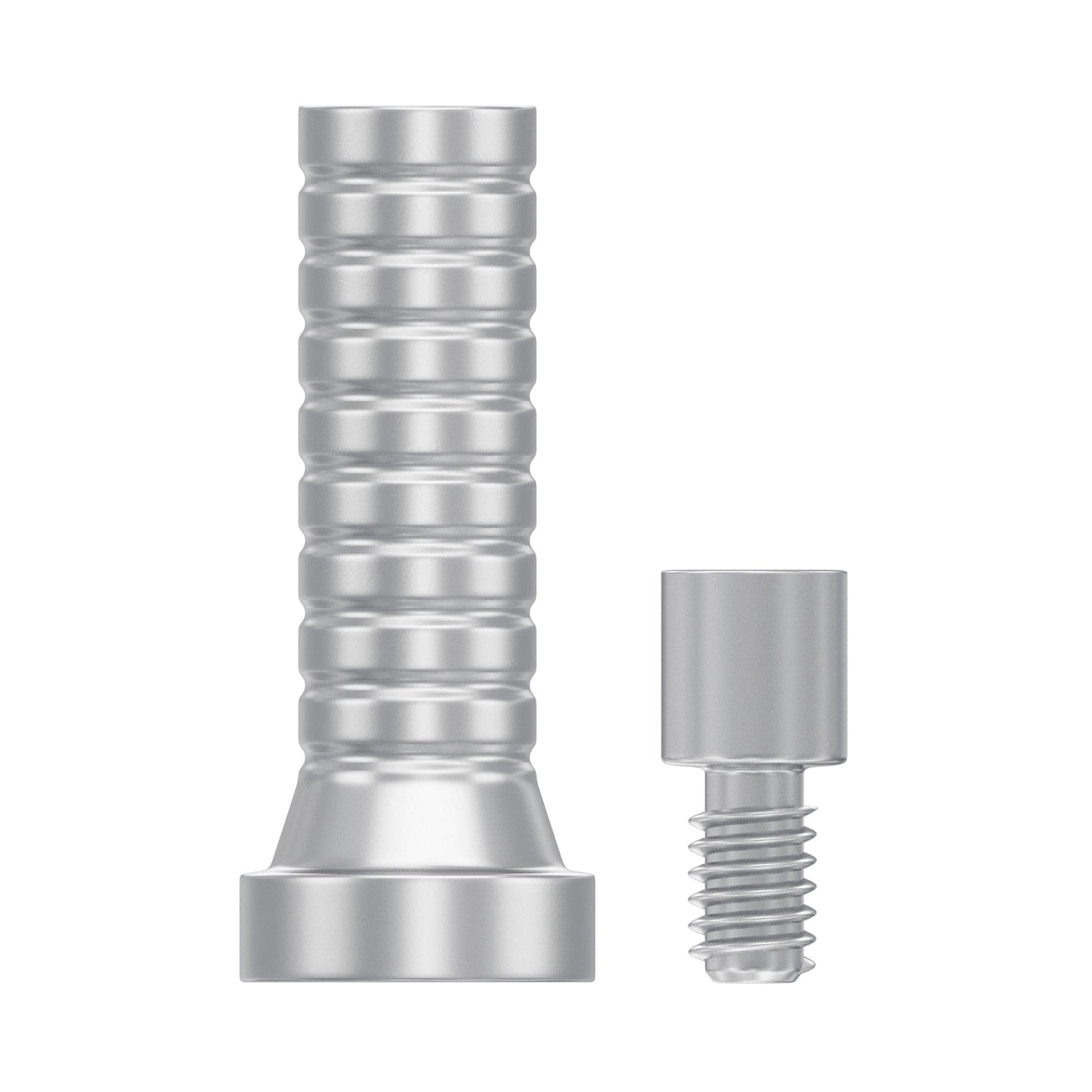

Titanium Sleeve Abutment M1.4

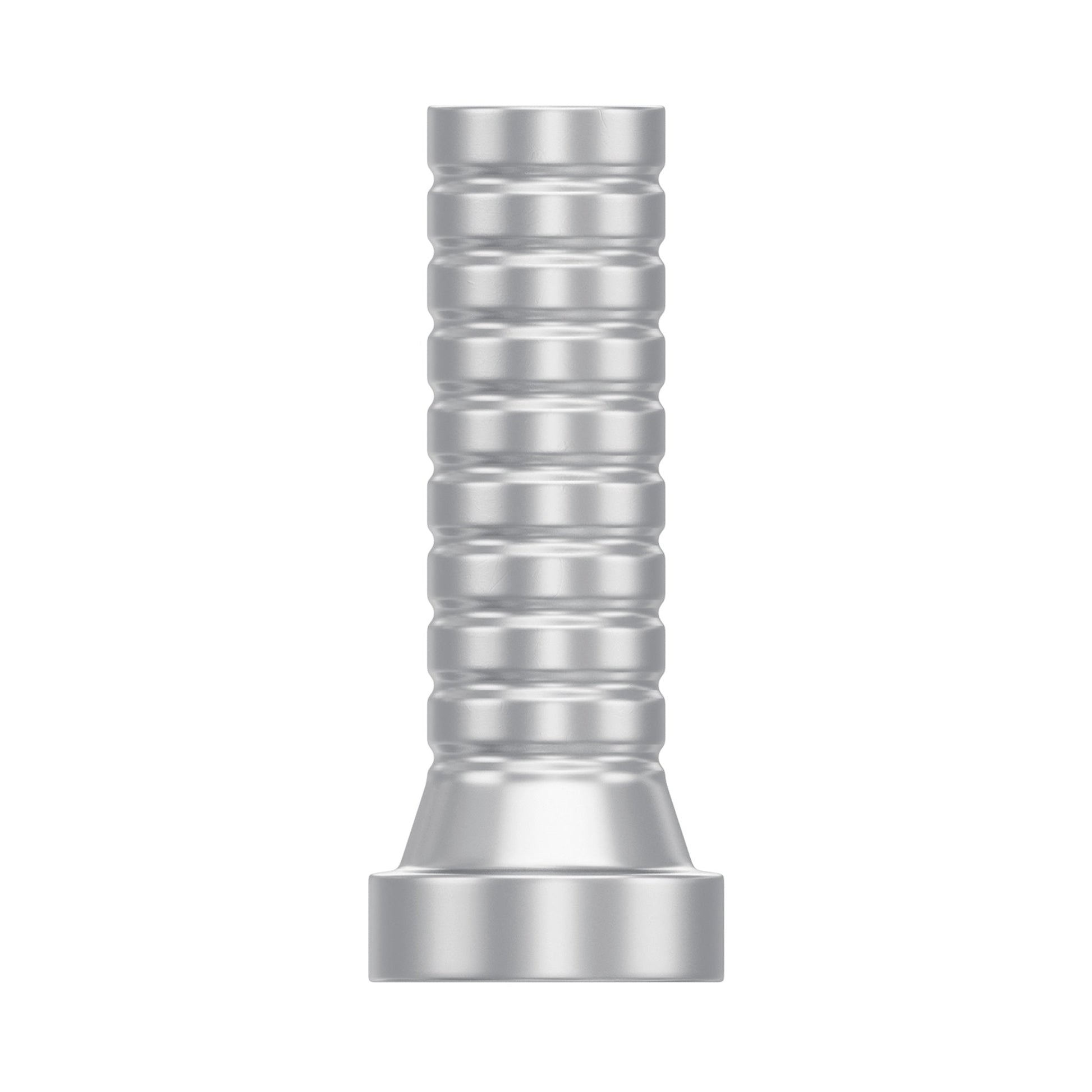

DSI Titanium Sleeve for Premium Multi-Unit Abutment M1.4 is used as a temporary restoration solution. The sleeve is compatible with Nobel Biocare® and other multi-unit systems with the same upper hexagon connection of M1.4.

The sleeve makes a solid connection with the multi-unit abutment. It is made out of high-quality Titanium alloy Ti-6Al-4V grade 23 ELI which gives an adequate combination of biocompatibility and durability.

The sleeve can be installed using a regular hexagonal (internal-hex) abutment driver Ø1.25mm.

Indications:

• Used for fabricating provisional restorations on top of the multi-unit abutment, crowns, bridges, etc.

Features and benefits:

• Excellent biocompatibility, no risk of abruption
• Precise, non-rotational, functional
• Simple, fast, and accurate positioning
• Outstanding stability for the crowns and bridges

Technical information:

• Material: Titanium alloy Ti-6Al-4V grade 23 ELI - biocompatible
• Diameter: 4.9mm
• Length: 11mm
• Platform: Upper hexagon multi-unit abutment connection 1.4M
• Compatibility: DSI®, Nobel Biocare®

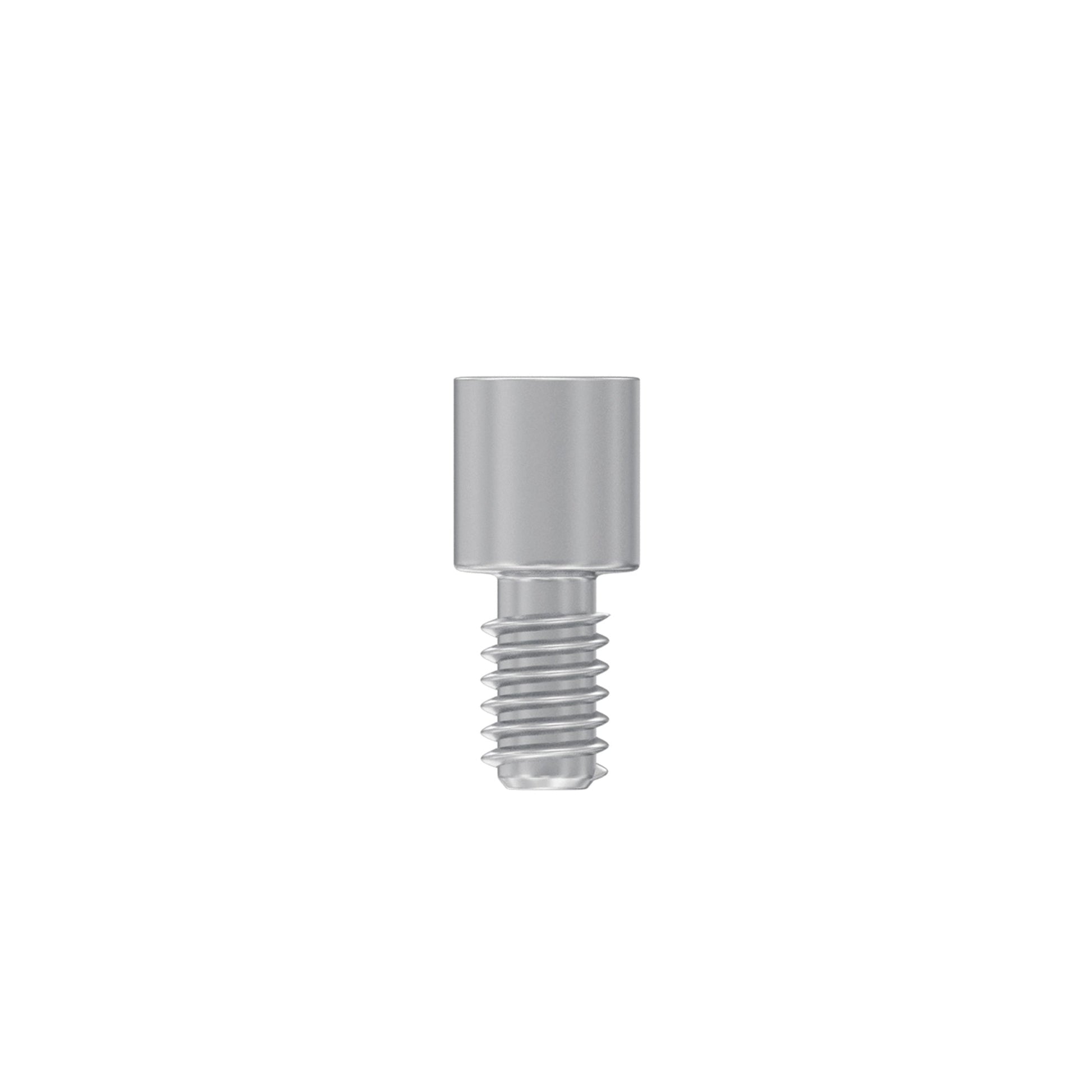

• Titanium fixation screw included with every abutment
