SD-FSR Drill Director for Screw Removal

SD-FSR Drill Director for Screw Removal

27.260 HUF
27.260 HUF
Sale Sold out
Taxes included.
Type

DSI SD-FSR Drill Guides cover almost all the platforms. These guides will help you to remove the broken screw in an advanced technique when the regular means will not work for some reason. The guides center the reverse drill and stabilize it during the procedure, so you will be able to perform with filigree accuracy. After drilling out the broken screw you can get it out by the regular means using the removal drill.

Indications:

  • The guides serve to assist in the extraction of broken screws by centering and stabilizing the reverse drill throughout the procedure

Features & Benefits:

  • Simple removal of all kinds of fixation screws, broken and fractured alike
  • No bone damage or serious trauma for patients
  • No need for surgical intervention, trephine drills, or additional units
  • When the broken screw is lifted from the implant it can then be replaced by a new prosthetic solution with a new fixation screw
  • Applicable for a large variety of implant types, and diameters
  • Fast, reliable, and cost-effective solution

Technical information:

  • Material: Stainless steel
  • External device connection type: Ratchet square Ø4.0mm
  • Autoclavable and reusable

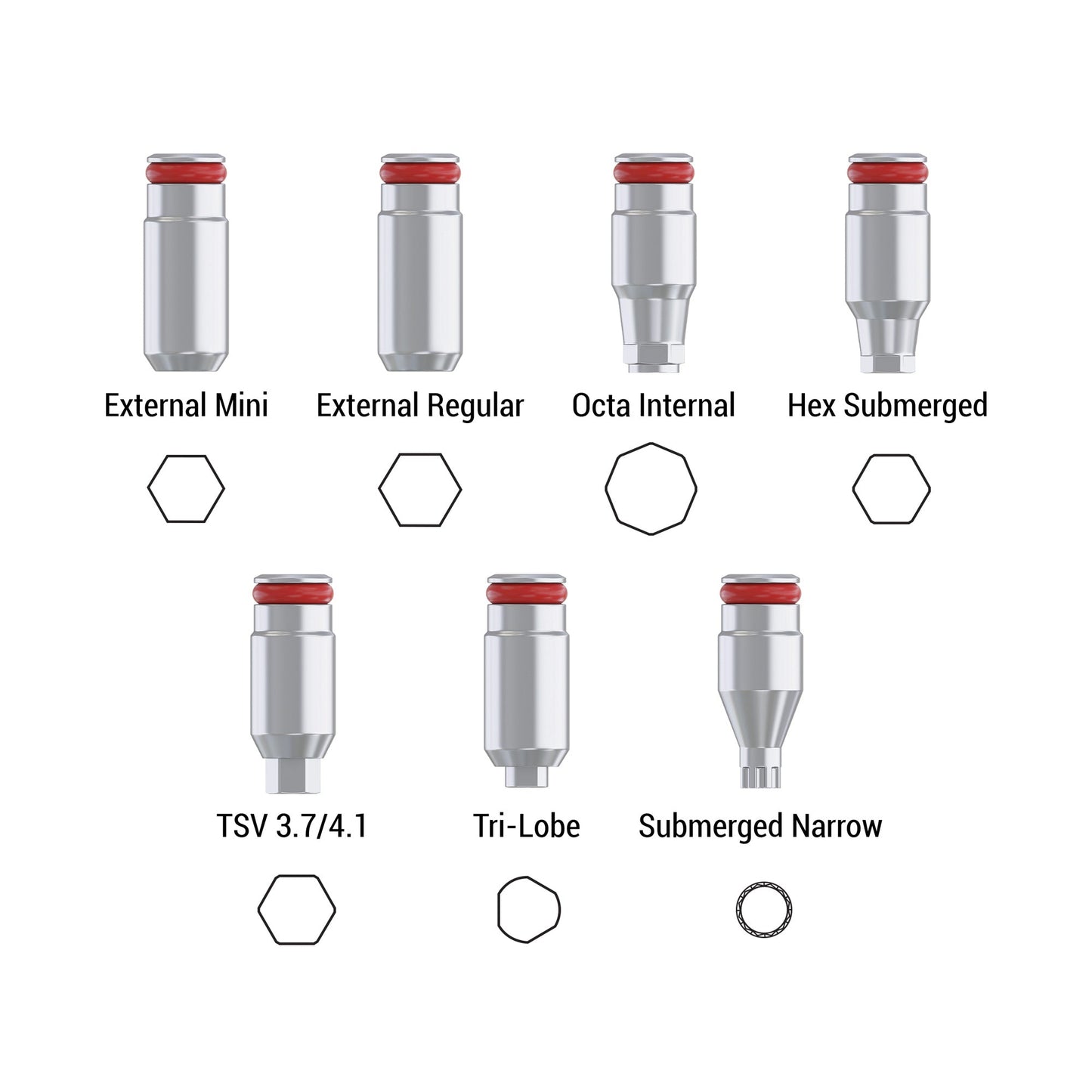

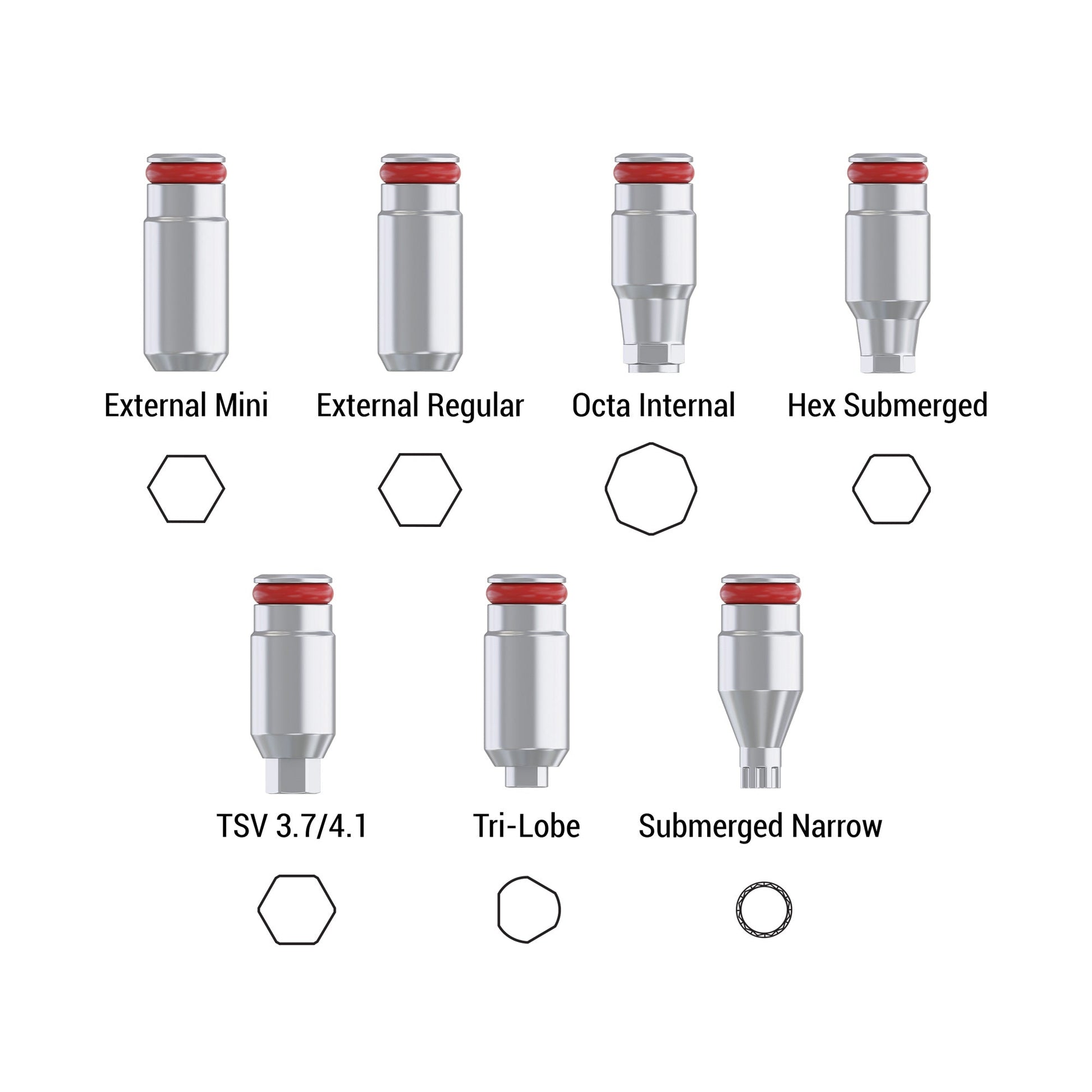

Guides compatibility:

  • G-EM: External mini - Hi-Tec Summit®, Nobel Branemark® NP
  • G-ER External regular - Nobel Branemark® RP
  • G-OI: Octa internal - Straumann® ITI TL, Implant Direct® SwishPlant
  • G-HS: Hex submerged - Nobel Active® / DSI Conical®
  • G-TSV: TSV 3.7/4.1 - Zimmer® TSV / Biohorizons® / MIS® / Implant Direct® Legacy / DSI® Hex
  • G-TRI: Tri-lobe - Nobel® TriLobe
  • G-SN: Submerged narrow - Hiossen® / Osstem®
