DSI

Straight Multi Unit Full Set

Straight Multi Unit Full Set

26.190 HUF
26.190 HUF
Sale Sold out
Taxes included.
Collar Height

The DSI Premium Multi-Unit Abutments are a key component in connecting endosseous dental implants and multiple implant screw-retained restorations. They are suitable for partial or full jaw as in treatments like the All-on-4 or All-On-6, as they provide edentulous and partially edentulous patients with a full-arch prosthesis.

DSI Premium multi-unit unique design provides the most advantageous soft tissue contouring. The low-profile abutment can be inserted into a shallow or deep tissue with no need for readjusting. DSI Premium multi-unit system made with the highest degree of accuracy. All the parts fit each other with exceptional veracity, thanks to the thorough examination of every component by a leading team of qualified professionals‍

  • DSI Premium multi-unit Time-proven design Allows, work with different implants (regular hexagonal, narrow, conical) without changing the restoration at the multi-unit level

DSI Premium multi-unit abutments could be inserted directly into the implant for any screw-retained restoration. A broad spectrum of screw-retained supra structures is available for this multi-unit system presenting additional possibilities for each patient's specific individual case.

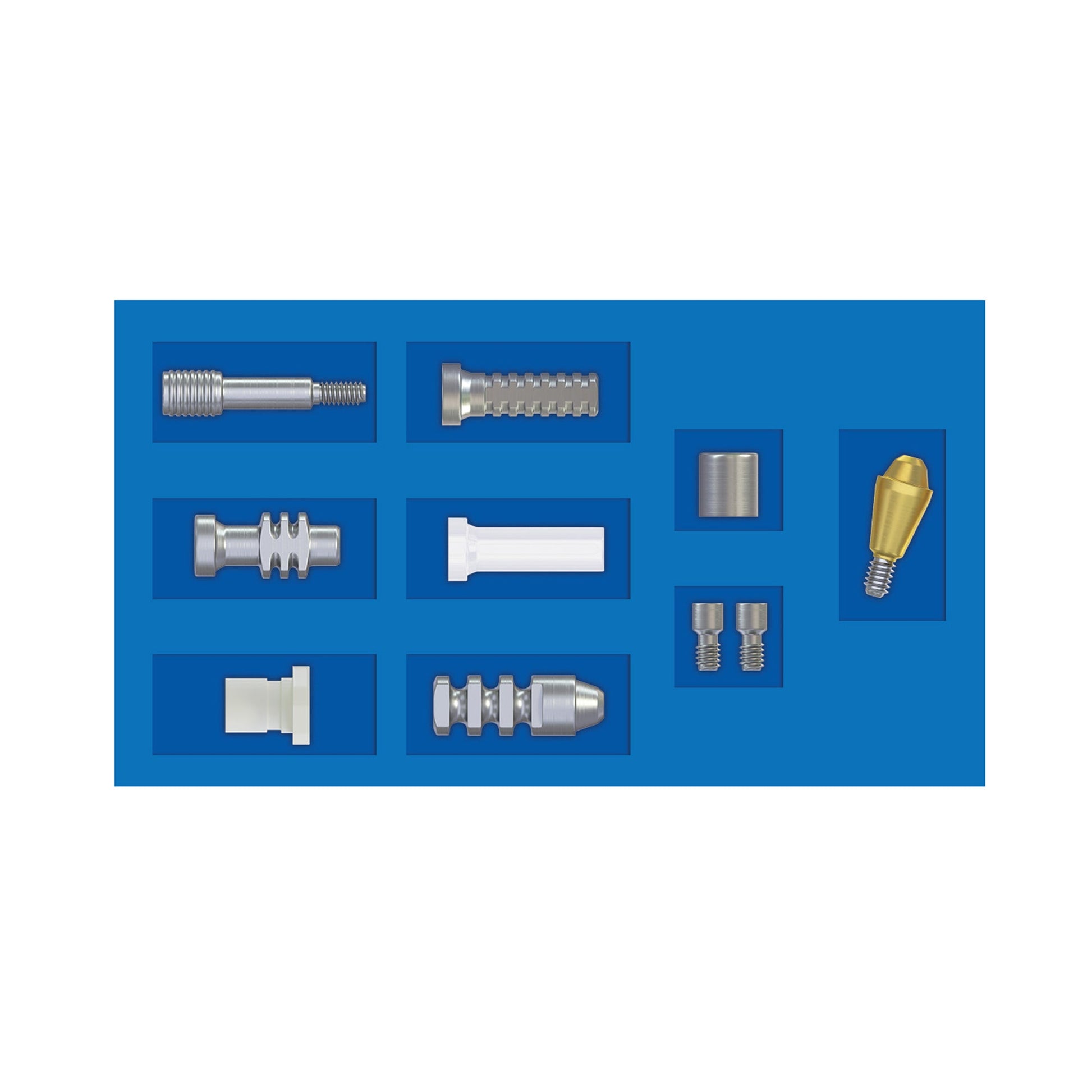

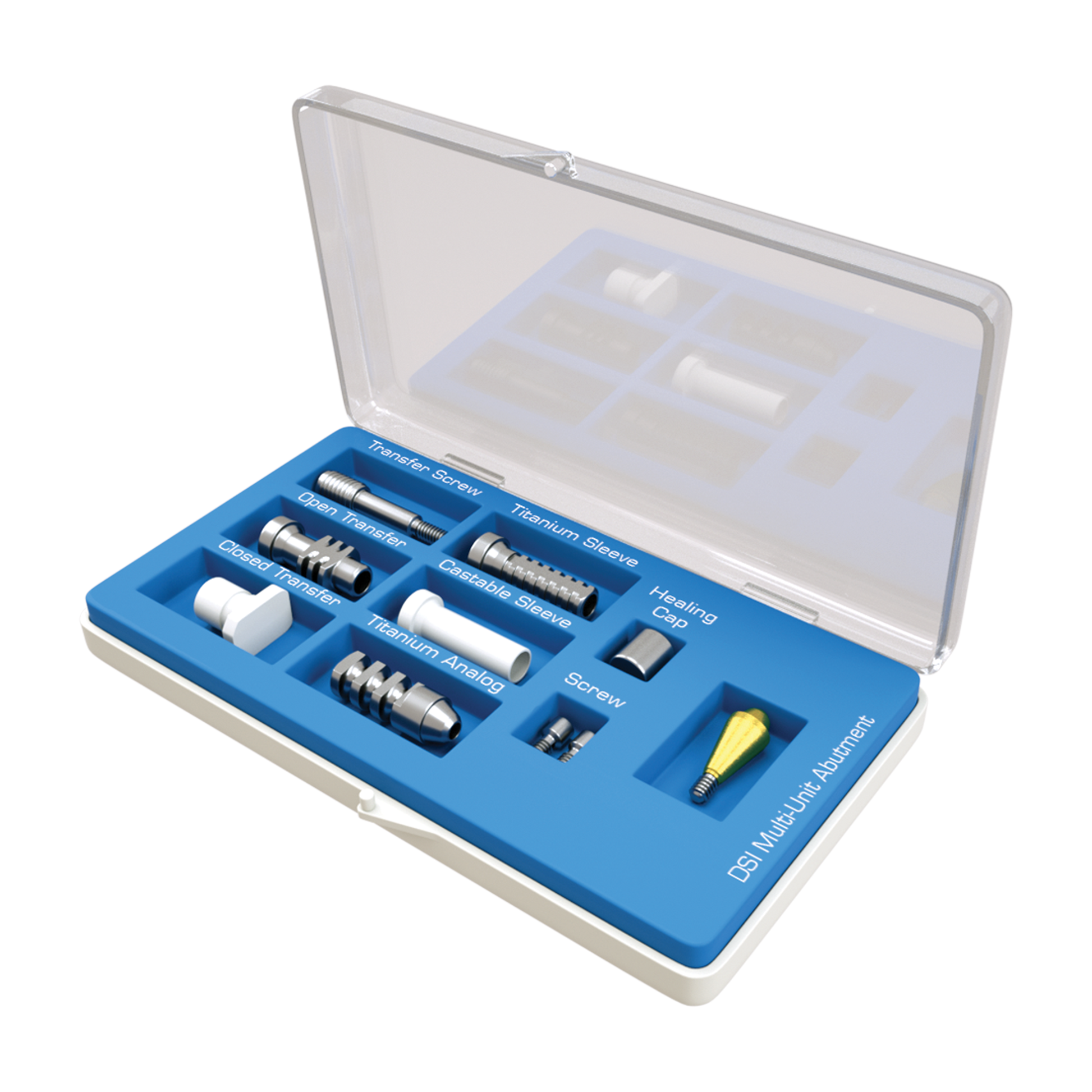

The most commonly used and versatile is the Full Set, which includes

One abutment of the chosen size:

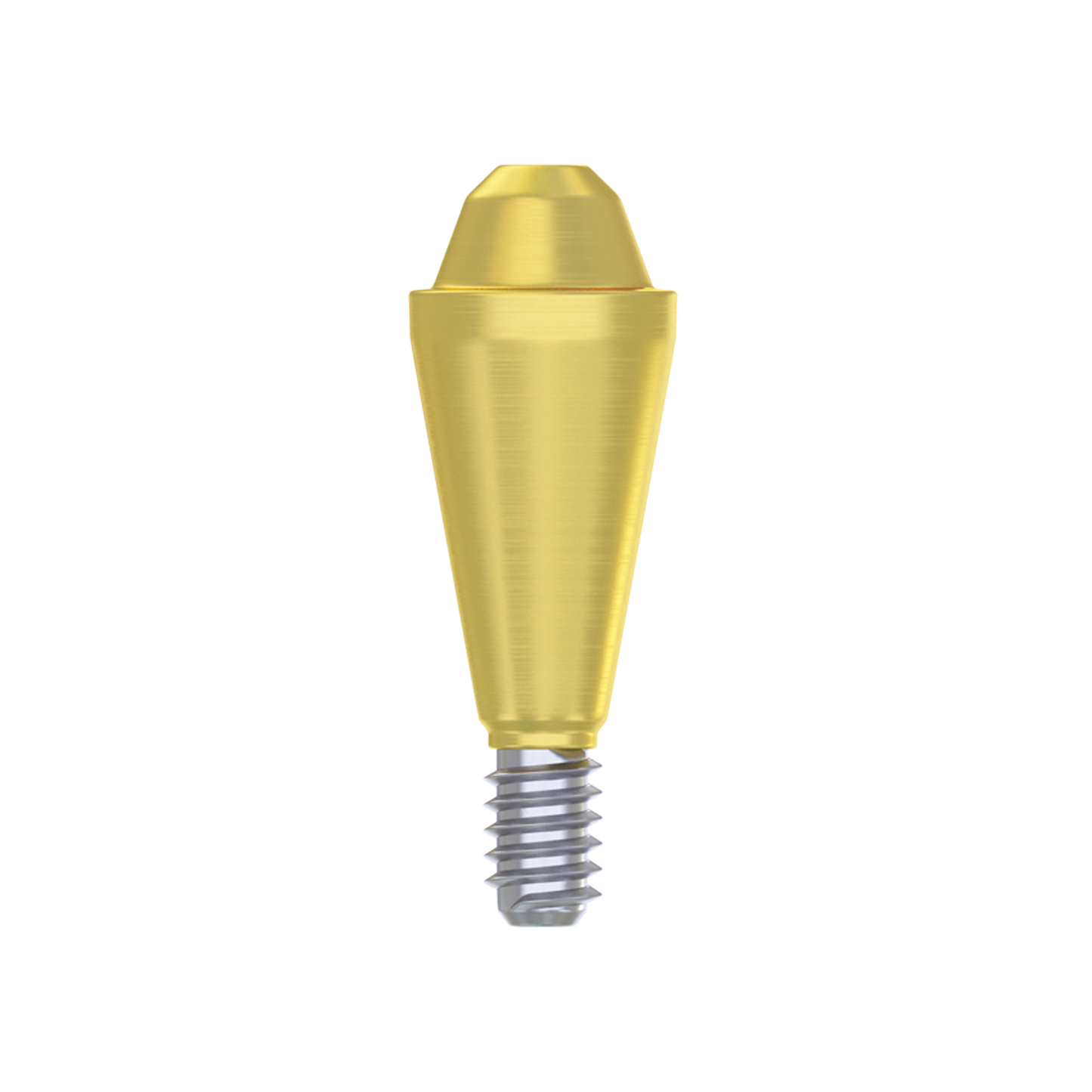

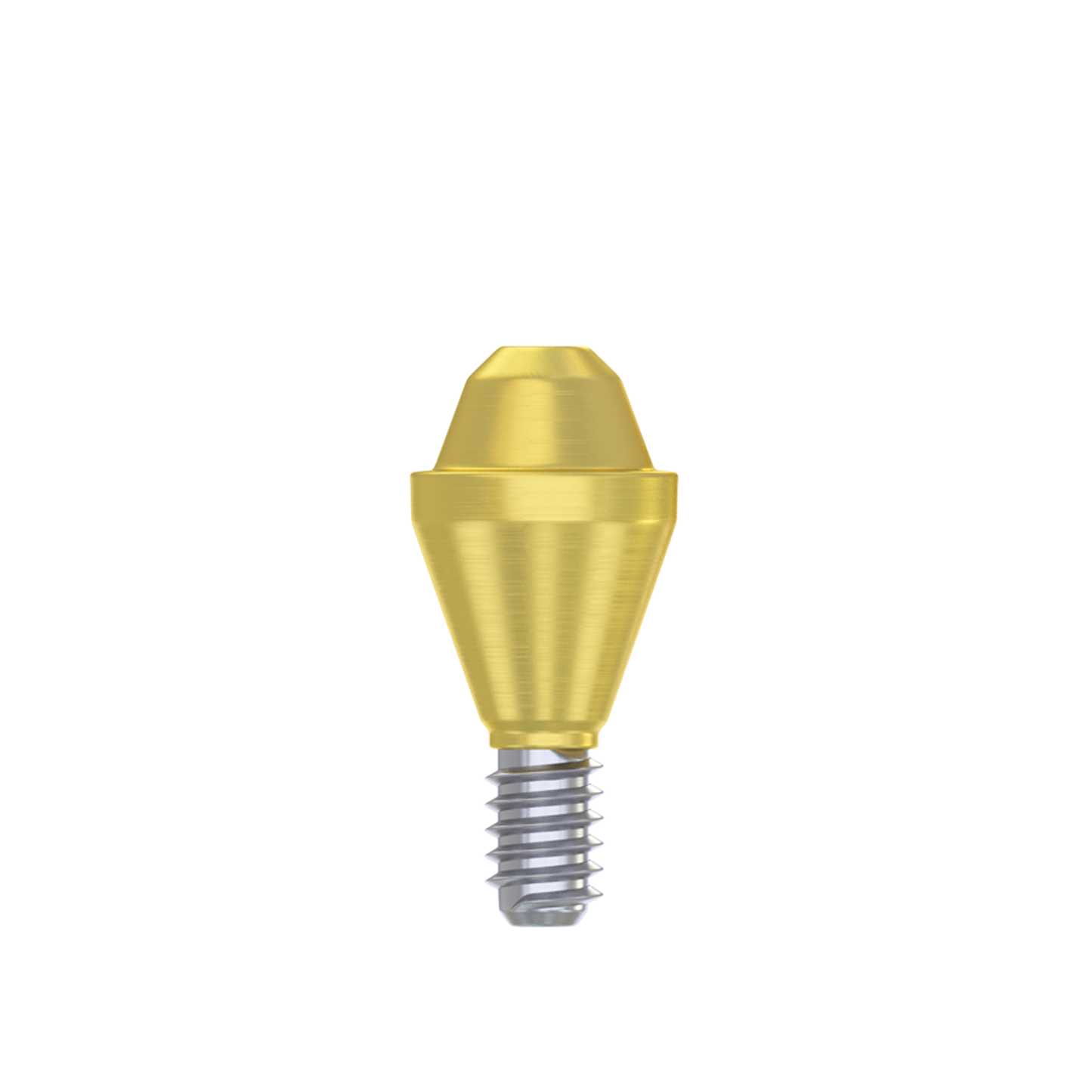

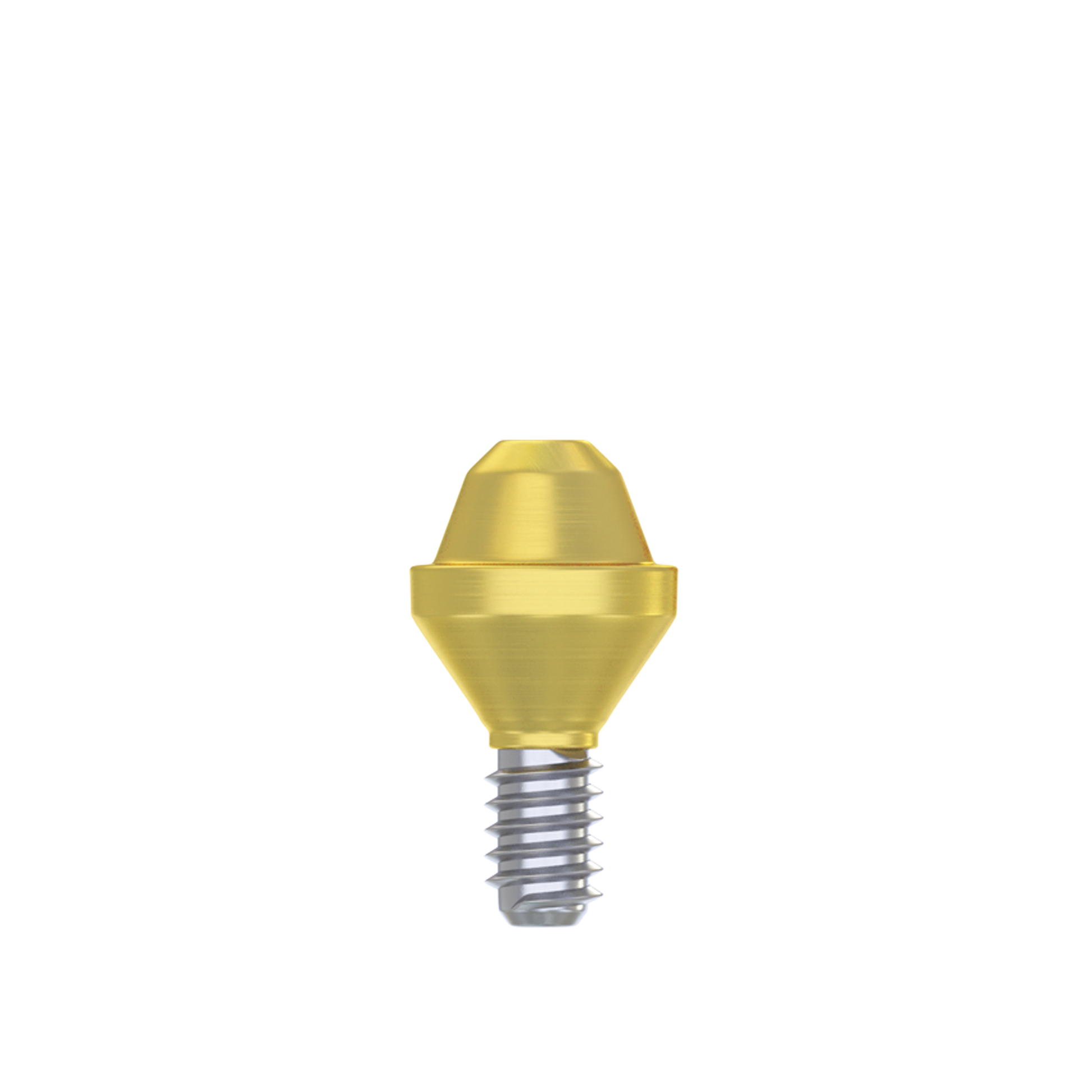

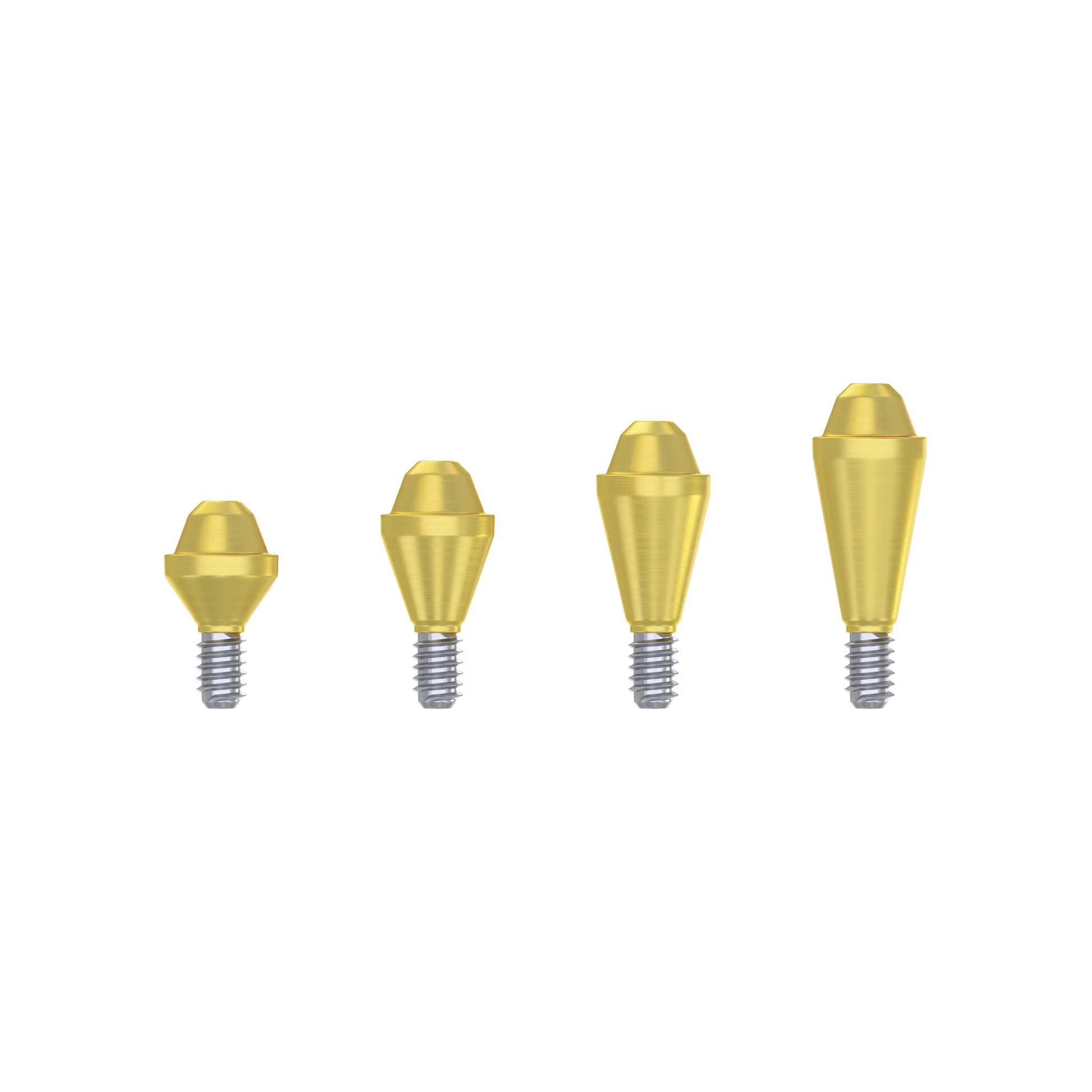

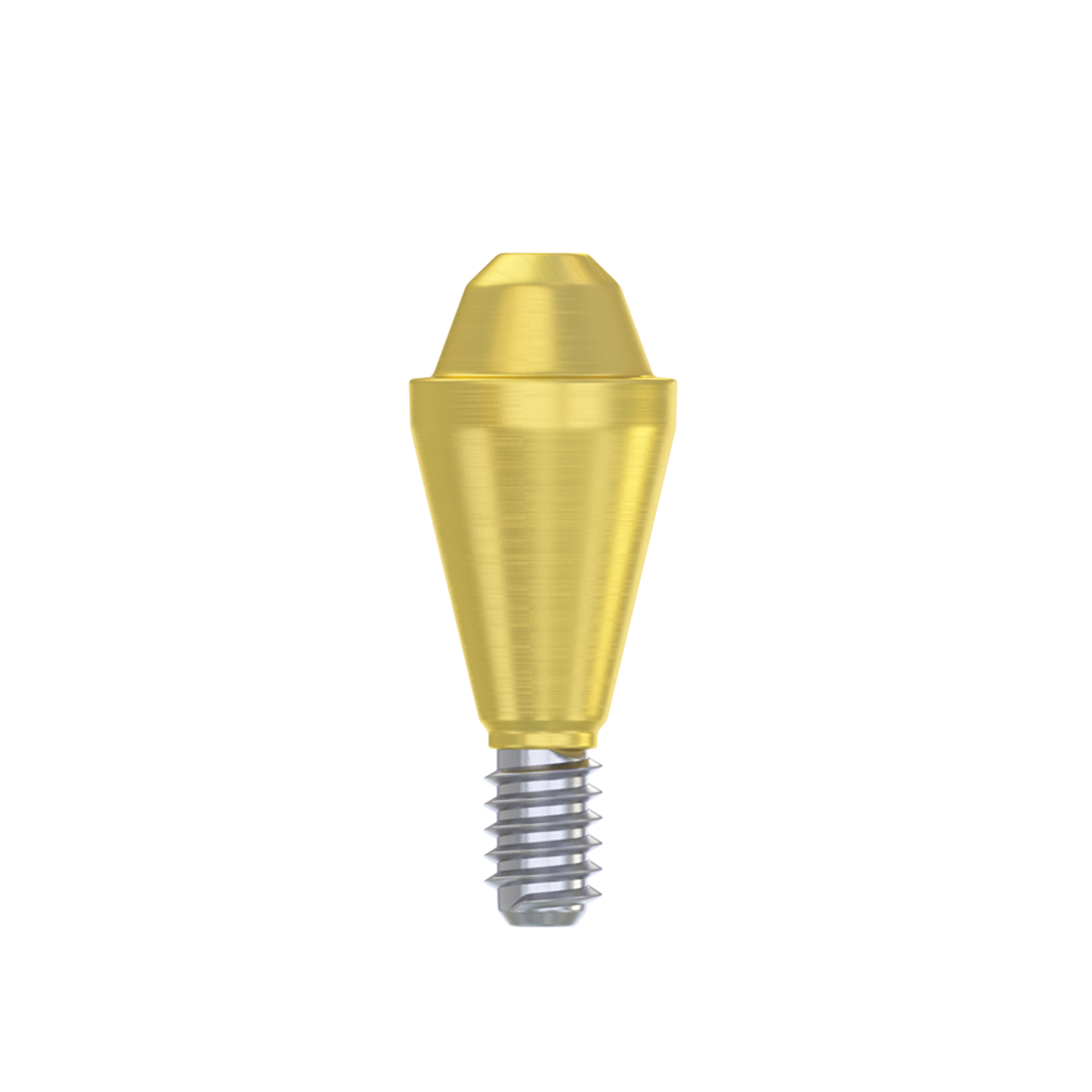

  1. MUA-NB-NP15, MUA-NB-NP25 , MUA-NB-NP35 , MUA-NB-NP45: Straight Multi Unit Abutment Ø4.7mm ,1.0-4.0mm x1

And the following parts:

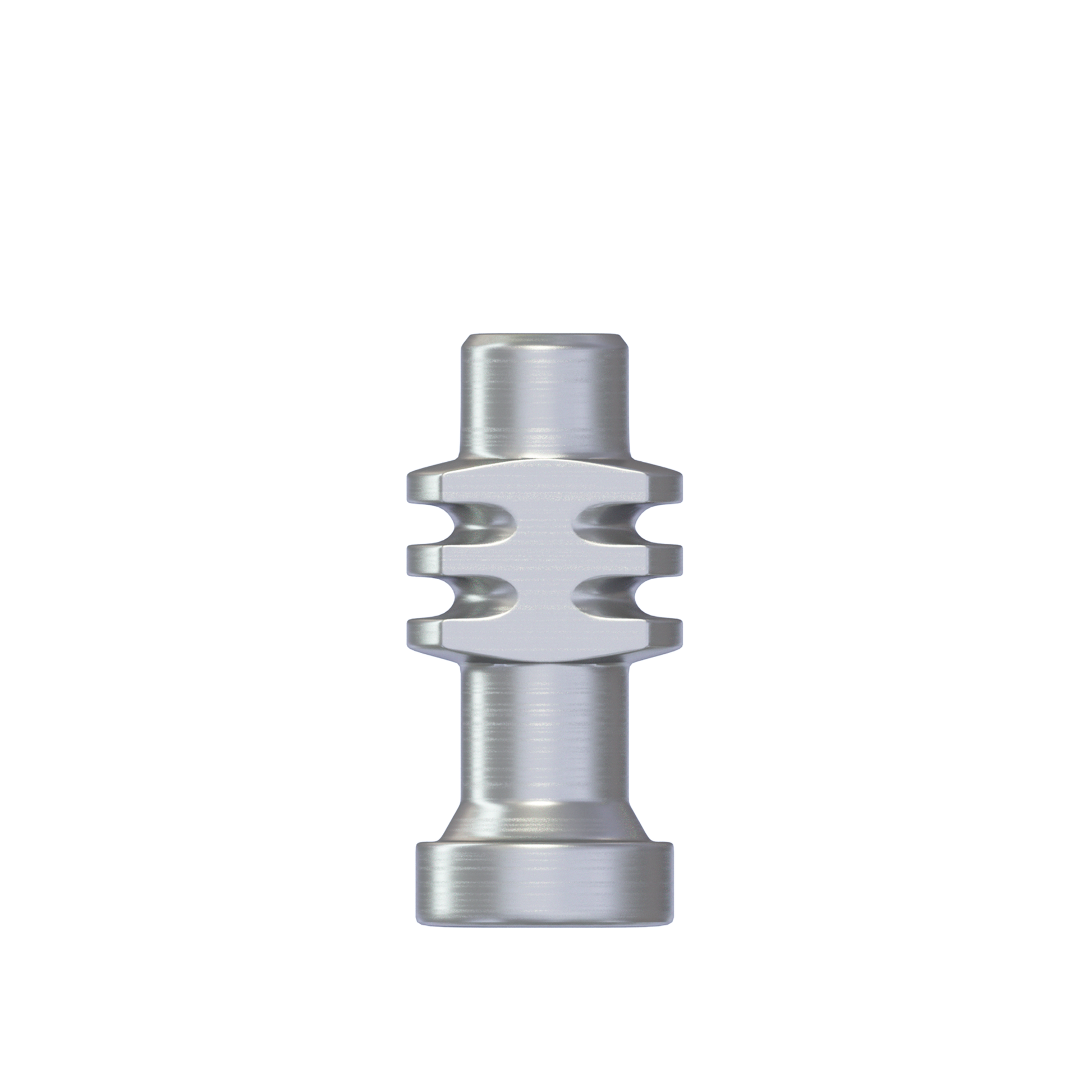

  1. STFMU-K: Open Tray Transfer Ø 4.8mm , L=8.5mm, H=10.7mm x 1

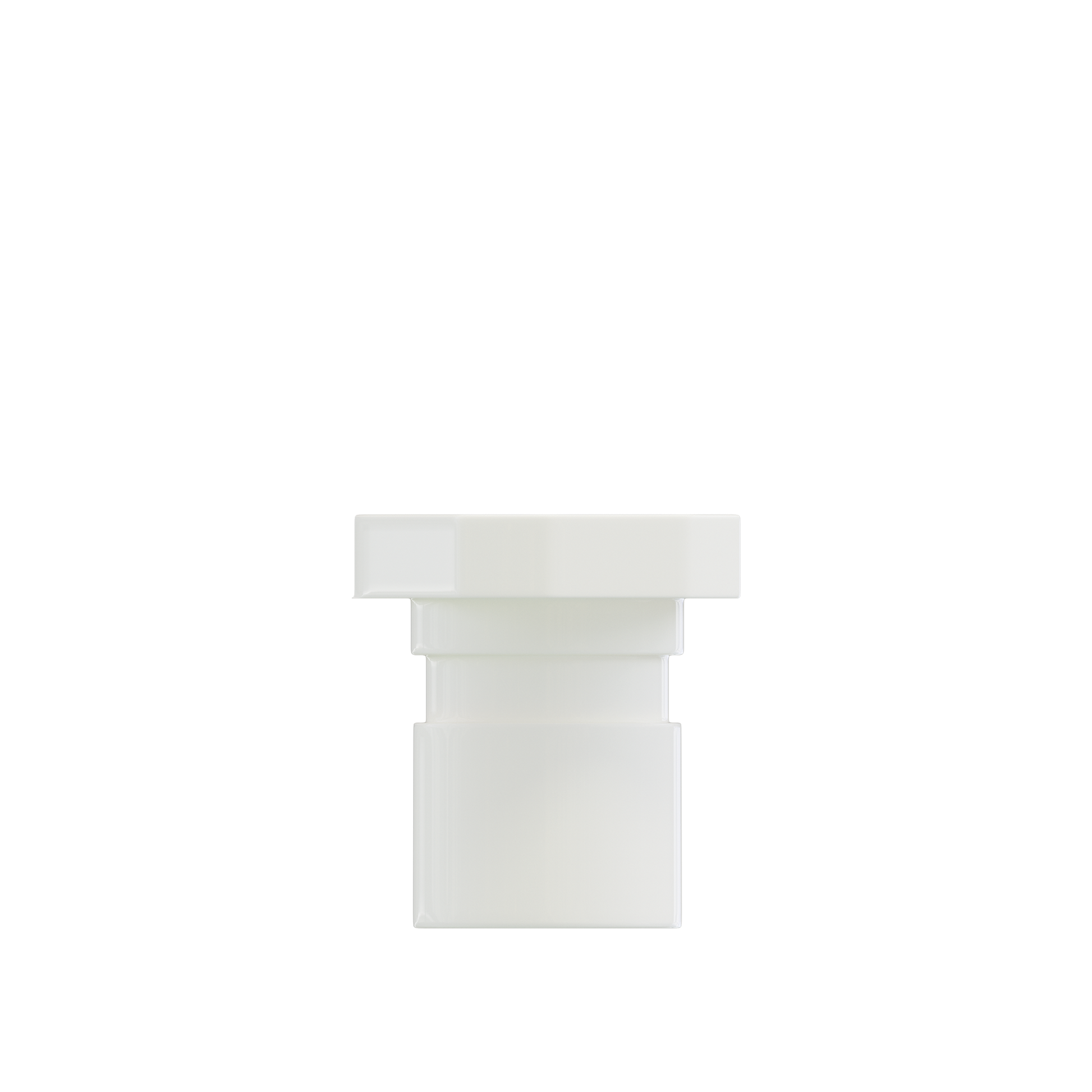

  2. STFMU-KC: Snap-On Closed Transfer Ø 4.75mm , L=5.0mm, H=7.2mm x 1

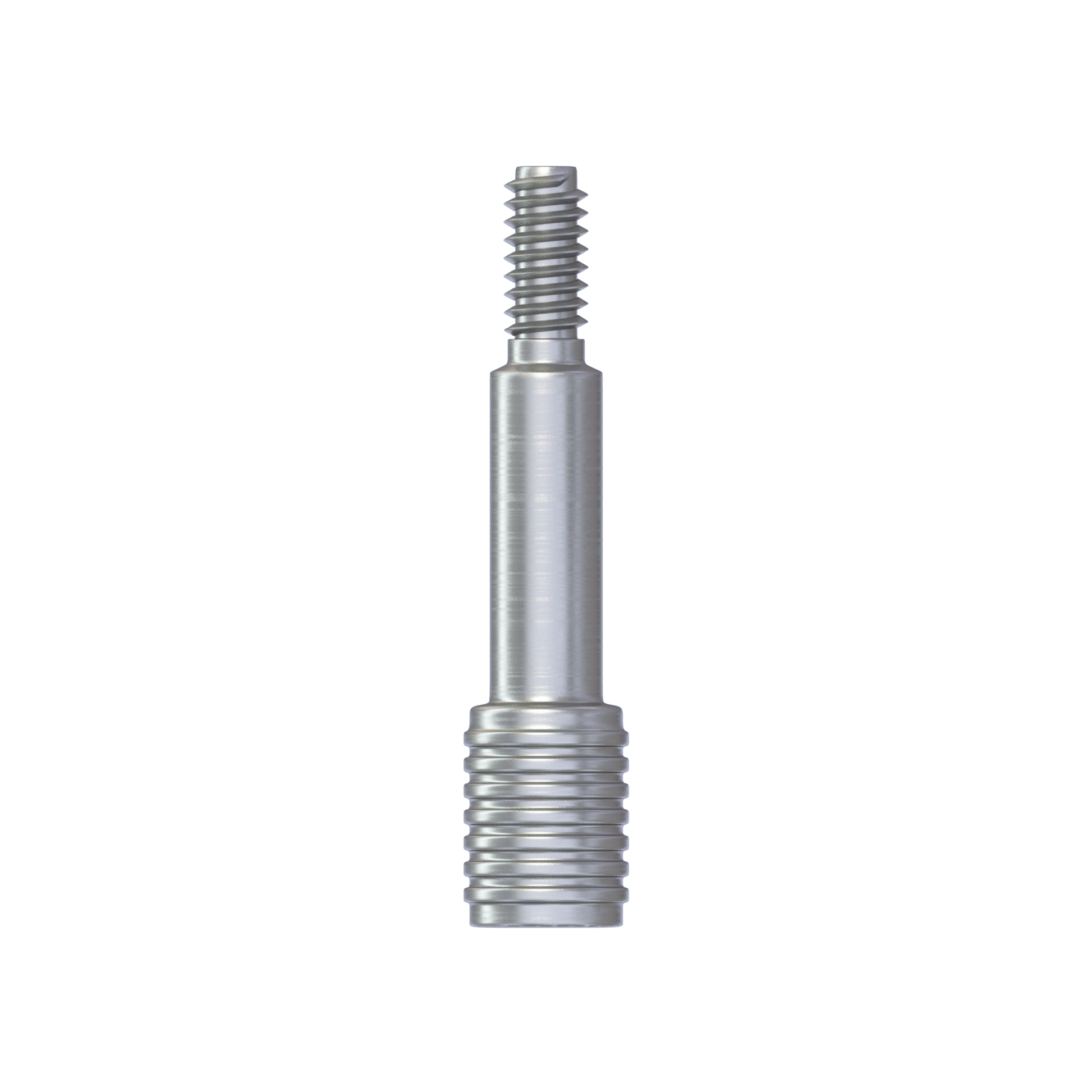

  3. SSFTMU-K: Premium Transfer Screw Ø 2.0mm , L=11.0mm, H=14.5mm x 1

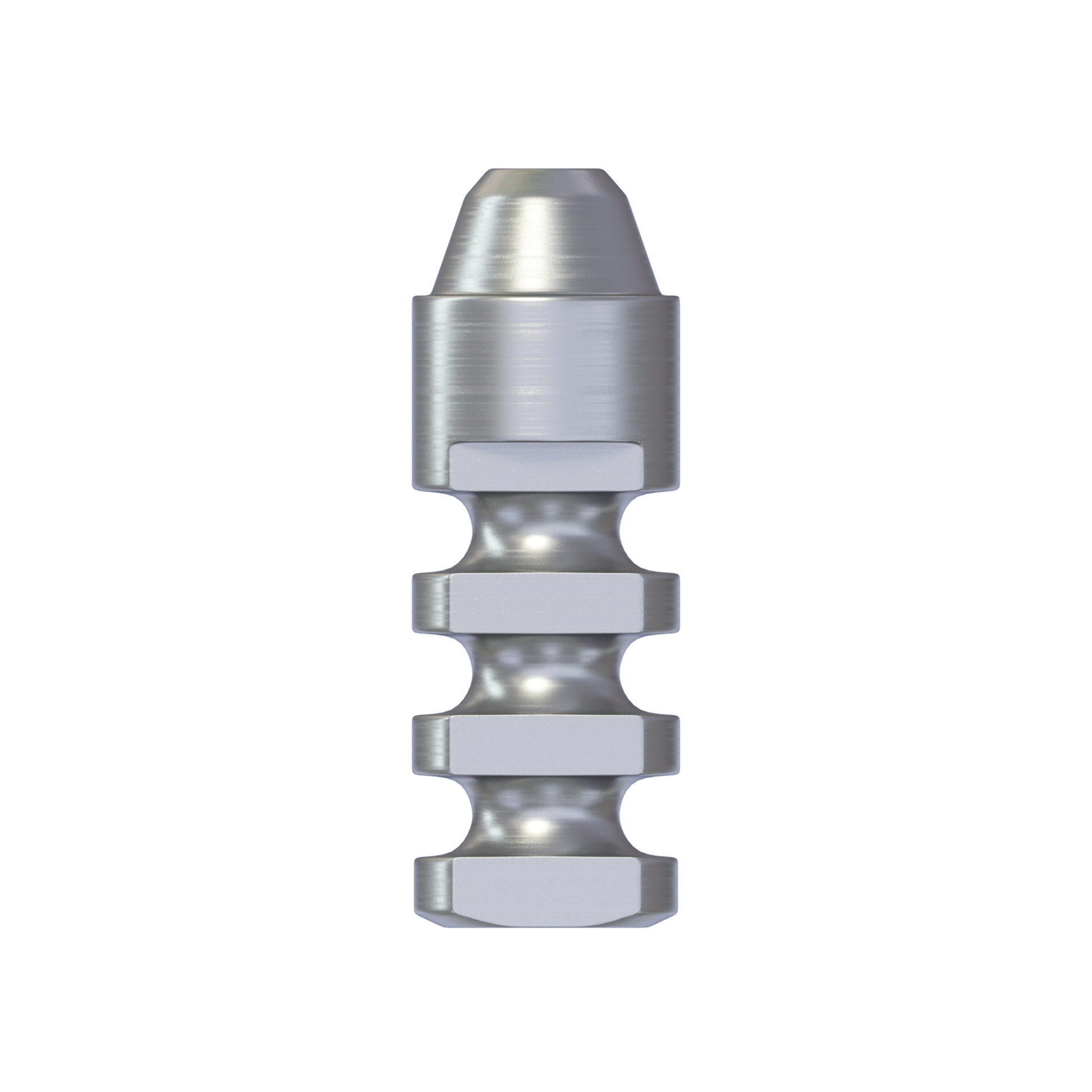

  4. SAFMU-K: Titanium Analog Ø 4.8mm , L=7.0mm, H=13.5mm x 1

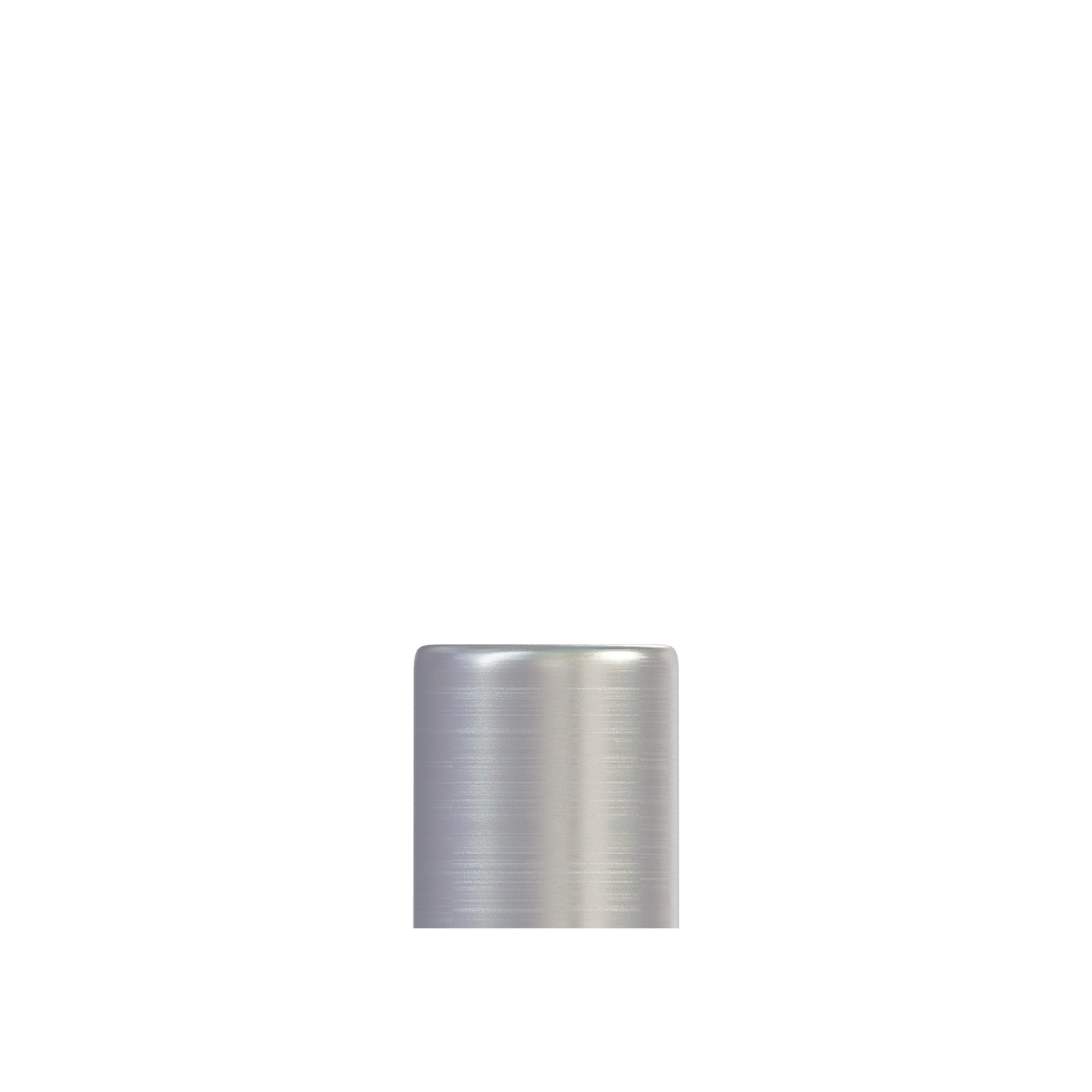

  5. SHCFMU-K: Healing Cap Ø 4.9mm , L=2.35mm, H=5.0mm x 1

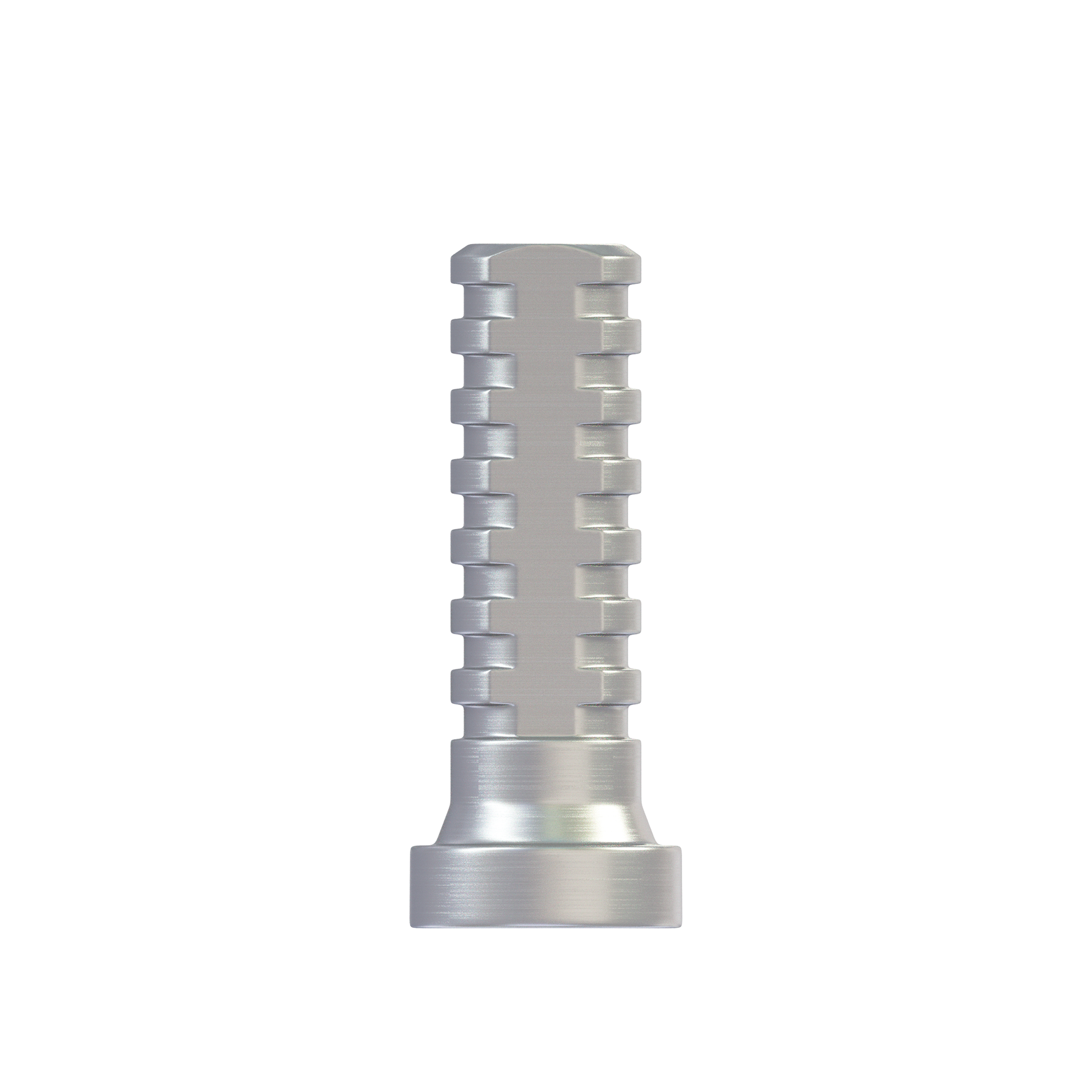

  6. SSTFMU-K: Titanium Sleeve Abutment Ø 4.8mm , L=10.0mm, H=12.0mm x 1

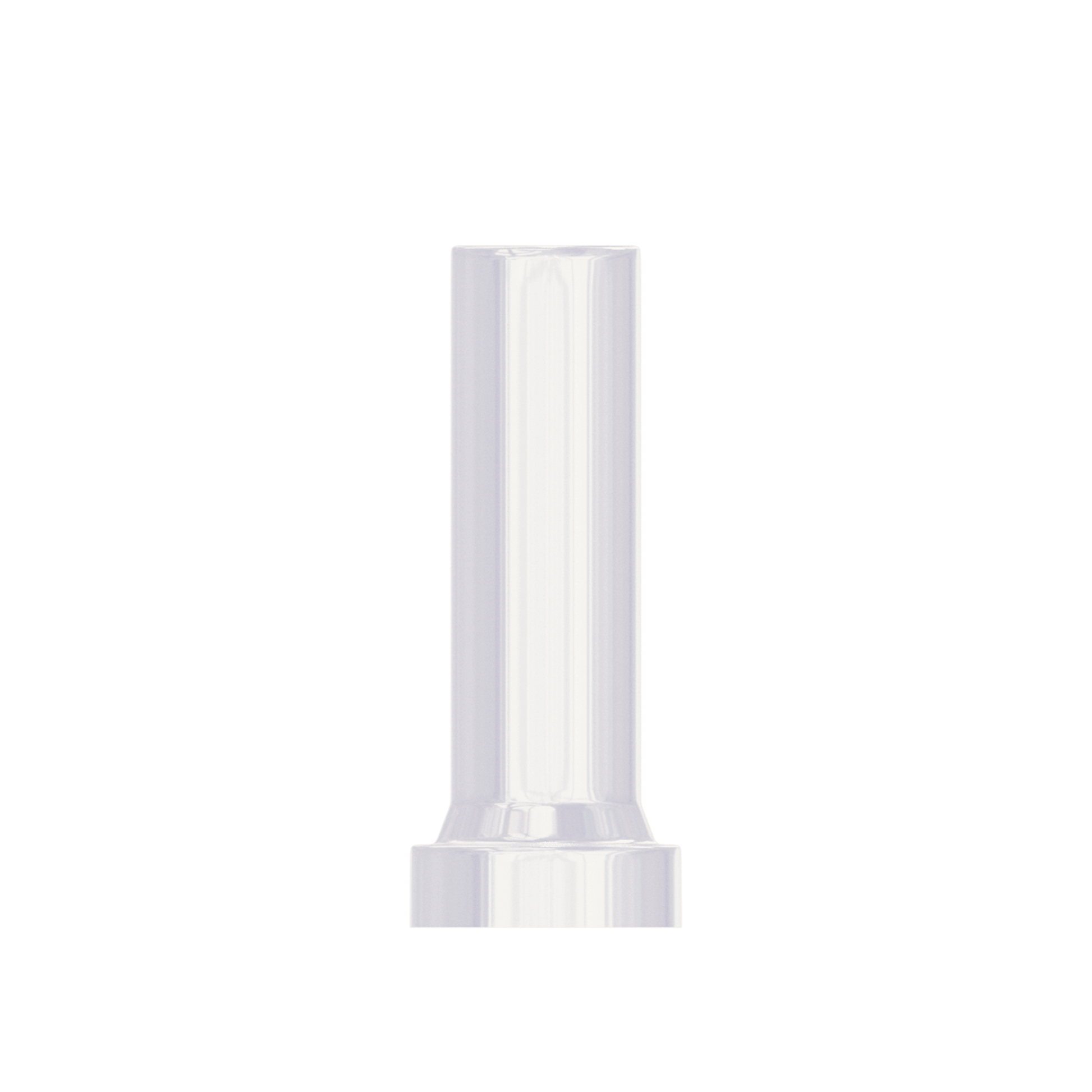

  7. SSPFMU-K: Castable Sleeve Abutment(for Lab) Ø 4.8mm , L=10.0mm, H=12.0mm x 1
  8. SSFMU-K: Fixation Short Screws Ø 2.0mm , L=2.6mm, H=3.9mm x 2

Indications:

  • Multiple teeth
  • Complete bridges
  • Fabrication of long-term/permanent restorations
  • All-on-4,All-on-6

Features:

  • Excellent biocompatibility, no risk of abruption.
  • Precise, non-rotational, functional.
  • Simple, fast, and accurate positioning.
  • Outstanding stability for the crowns and bridges
  • Superior aesthetic results.

Technical information:

  • Made of Titanium alloy Ti-6Al-4V grade 23 ELI - biocompatible
  • Regular Platform NP - Ø4.7mm / collar height 1.0-4.0mm
  • Implant Level Connection Conical Connection NP Ø3.5mm, compatible with: DSI Conical NP, NobelActive® NP platform Ø3.5mm
  • Multi Unit level Connection M1.6 Compatible with : DSI®, MIS®,
